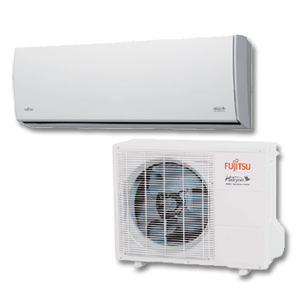

RLS2H Series Extra Low Temp Heating Mini-Split
The RLS2H systems are packed with features specifically created to save you money – like Energy Saving Program, or ESP, a programmable remote control and inverter technology. The RLS2H system is perfect for cold climates and can operate efficiency do to -15dF.
- Powerful Heating Down to -15dF Outdoor Temperatures Heating capacity at low outdoor temperatures was improved by adopting a large heat exchanger and a high capacity compressor. Rated heating capacity is maintained up to 20dF. This new model can operate down to -15dF.
- Base Freeze Prevention RLS2H outdoor models are equipped with a base heater that prevents condensate from freezing.
- Energy Saving Program If you leave the room without turning the unit off, ESP knows that you left and 20 minutes later, set temperature is increased by 4°F when cooling and reduced by 8°F when heating. When you come back to the room, it returns to previous operating mode.
- Programmable Remote Programmable Remote Weekly timer can be easily set by wireless remote controller. ON, OFF can be set up to 4 times in one day and up to 28 times in one week. For other modes, program timer and sleep timer can also be selected by pushing a single button.
- World Class Performance Up to 27.2 SEER.
- Quiet Operation
- Inverter Technology The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much less expensive to run.
MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
---|
ASU9RLS2 | Wall Unit | AOU9RLSH2 | 12.0 | 27.2 | 22.0 | 12.5 | 1/4 - 3/8 | 11.1x34.25x7.24 | 21 |
ASU12RLS2 | Wall Unit | AOU12RLSH2 | 13.6 | 25.0 | 22.1 | 12.0 | 1/4 - 3/8 | 11.1x34.25x7.24 | 21 |
ASU15RLS2 | Wall Unit | AOU15RSH2 | 18.4 | 21.5 | 23.9 | 12.0 | 1/4 - 1/2 | 11.1x34.25x7.24 | 21 |
AOU9RLS2H | Outdoor Unit | ASU9RLS2 | 12.0 | 27.2 | 22.0 | 8.8 | 1/4 - 3/8 | 24.5x31.2x13.8 | 86 |
AOU12RLS2H | Outdoor Unit | ASU12RLS2 | 13.6 | 25.0 | 22.1 | 9.3 | 1/4 - 3/8 | 24.5x31.2x13.8 | 86 |
AOU15RLS2H | Outdoor Unit | ASU15RLS2 | 18.4 | 21.5 | 23.9 | 10.3 | 1/4 - 1/2 | 24.5x31.2x13.8 | 88 |
Warranty Information
- Compressor for 84 months - Seven Years
- All Parts
for 60 months -
6-7600.pdf (Specification Sheet, Technical Information)
